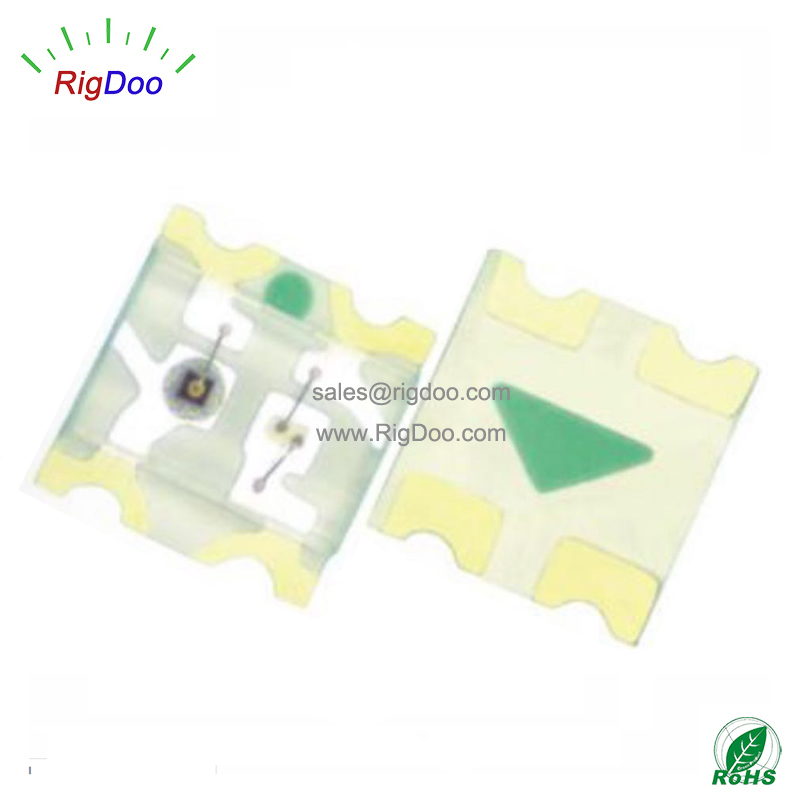

0605 1615 Red Blue Bi-Color SMD LED Light Emitter RD1616-62URUBC

0603 Bi Color Red/Blue Dual Colors LED

B站不支持收货地址

B站不支持库存规格

Model Number: RD1616-62URUBC

Payment: Bank T/T, Paypal, Wester Union etc.

Place of Origin: China

Brand: RigDoo

Certification: RoHS, Reach

Availability: 300000000 each month

Delivery Time: 2-15 days

Package Type: 4000 pieces each reel; 1 reel in an anti-static bag

MOQ: 4000

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

Related Products

0605 0606 Red / Y.Green Bi-Color LED SMD Diode RD1616-62URYGC

0605 0603 Dual Color LED Red/Green Diode SMD RD1616-62URUGC

0605 1616 RGB SMD LED Chip Tri-Color Emiter RD1616-63RGBC-C3A

0605 0606 Red White SMD Dual Color LED SMT RD1616-62URUWD

Product Information
Customer Reviews

Datesheet

Download Datesheet

Features

◆Package ( L/W/H ) : 1.6×1.5×0.6mm
◇Color : Ultra Bright Red/Blue Bi-color
◆Lens: Water Clear Flat Mold
◇EIA STD Package
◆Meet ROHS, Green Product
◇Compatible With SMT Automatic Equipment
◆Compatible With Infrared Reflow Solder Process

❈ Package Profile

Notes: a. All dimensions are in millimeters ;

b. Tolerance is ± 0.10 mm unless otherwise noted.

❈ Product Parameter

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating			Unit
Power Dissipation	Pd	UR	75		mW
		B	75
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	UR	70		mA
		B	70
DC Forward Current	IF	UR	25		mA
		B	25
Reverse Voltage	VR	UR	5		V
		B	5
Operating Temperature Range	Topr	-30°C ~ + 85°C
Storage Temperature Range	Tstg	-40°C ~ + 90°C
Soldering Condition	Tsol	Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds
Electrostatic Discharge	ESD	2000		V

Electrical Optical Characteristics At Ta=25℃

Parameter	Symbol	Color	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	IV	UR	---	65	---	mcd	IF = 5mA
Luminous Intensity	IV	B	---	70	---	mcd	IF = 5mA
Dominant Wavelength	λd	UR	--615-		--630-	nm	IF = 5mA
Dominant Wavelength	λd	B	--461		--473-	nm	IF = 5mA
Peak Wavelength	λp	UR	---	630	---	nm	IF = 5mA
Peak Wavelength	λp	B	---	470	---	nm	IF = 5mA
Spectral Line Half-Width	Δλ	UR	---	20	---	nm	IF = 5mA
Spectral Line Half-Width	Δλ	B	---	30	---	nm	IF = 5mA
Forward Voltage	VF	UR	1.8	---	2.2	V	IF = 5mA
Forward Voltage	VF	B	2.8	---	3.2	V	IF = 5mA
Reverse Current	IR	UR	---	---	5	uA	VR=5V
Reverse Current	IR	B	---	---	5	uA	VR=5V
Viewing Angle	2θ1/2	---	---	120	---	deg	IF = 5mA

Notes: 1.Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

2.θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
