3216 1206 Normal Yellowish Green Dome Lens Smd Led Chip

Related Products

3216 1206 Yellow Ball Head LED Small Beam Angle Dome Lens RD3216-201UYCDL

3216 1206 Ball Head Small Emitting Angle Dome Lens LED Diode Amber RD3216-201UOCDL

1206 3216 Dome Lens SMD LED Red 30 Degree Small Beam Angle RD3216-201URCDL

Product Information
Customer Reviews

Datesheet

Download Datesheet

Features

◆Package ( L/W/H ) : 3.2× 1.6 × 1.96mm
◇Color : Ultra High Bright Yellowish Green
◆Lens: Water Clear Dome Mold
◇EIA STD Package
◆Meet ROHS, Green Product
◇Compatible With SMT Automatic Equipment
◆Compatible With Infrared Reflow Solder Process

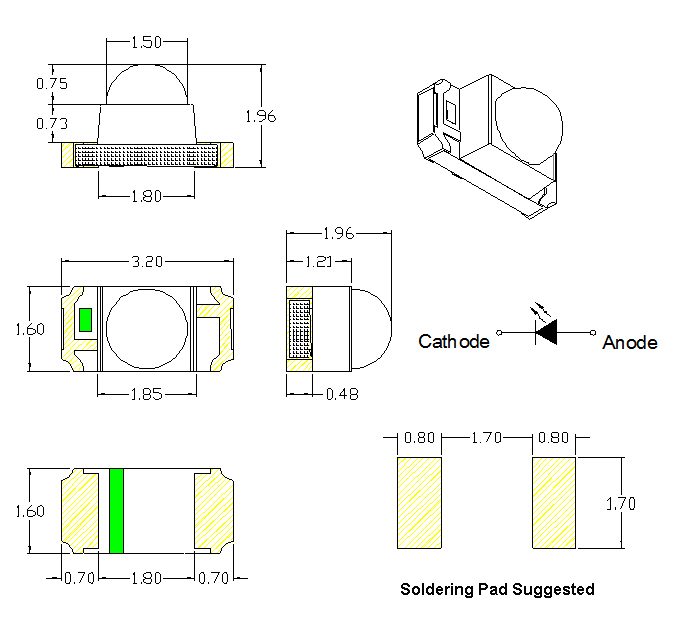

❈ Package Profile

Notes: a. All dimensions are in millimeters ;

b. Tolerance is ± 0.10 mm unless otherwise noted.

❈ Product Parameter

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating	Unit
Power Dissipation	Pd	70	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
DC Forward Current	IF	30	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-30°C ~ + 85°C
Storage Temperature Range	Tstg	-40°C ~ + 90°C
Soldering Condition	Tsol	Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds

Electrical Optical Characteristics At Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	IV		--90-		mcd	IF = 20mA
Viewing Angle	2θ1/2	---	30	---	deg	IF = 20mA
Dominant Wavelength	λd	568		572	nm	IF=20mA
Peak Wavelength	λp	---	570	---	nm	IF=20mA
Spectral Line Half-Width	Δλ	---	20	---	nm	IF=20mA
Forward Voltage	VF	1.8	---	2.6	V	IF=20mA
Reverse Current	IR	---	---	5	uA	VR=5V

Notes: 1.Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

2.θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

❈ Packaging
