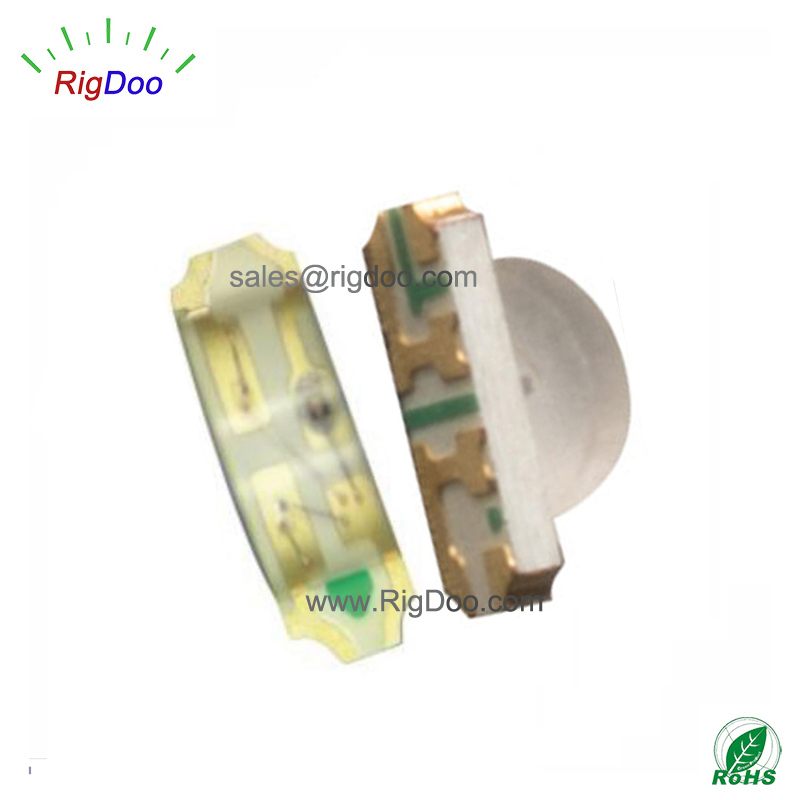

1204 3210 Side-View RGB SMD LED Tri-Color Diode RD3210-153RGBC

Side Emitting Full Colors LED RGB Three Color Light Emitter 3210

B站不支持收货地址

B站不支持库存规格

Model Number: RD3210-153RGBC

Payment: T/T, Paypal, WesterUnion, L/C etc.

Place of Origin: China Shenzhen

Brand: RigDoo

Certification: RoHS, CE, ISO9001, ISO14001

Availability: 500,000,000 pieces each month

Delivery Time: 5 days after full payment

Package Type: Surface Mounted Devices

MOQ: 3000 pieces

B站不支持优惠卷

Inquire Online
Download

Cancel

Add success, do you want to check your shopping cart?

Ok Close

B站不支持产品保障

Related Products

1204 3210 Bi-Color LED Red/Y.Green Light Emitter SMD RD3210-152URYGC

1204 3210 Red/P.Green Dual Color LED SMD Diode RD3210-152URUGC

3210 1204 Red Blue Bi-Color Light Emitter LED SMD RD3210-152URUBC

Product Information
Customer Reviews

Datesheet

Download Datesheet

Features

◆Package ( L/W/H ) : 3.2 x 1.0 x 1.5 mm
◇Color : Ultra Bright RGB Full Color
◆Lens: Water Clear Flat Mold
◇EIA STD Package
◆Meet ROHS, Green Product
◇Compatible With SMT Automatic Equipment
◆Compatible With Infrared Reflow Solder Process

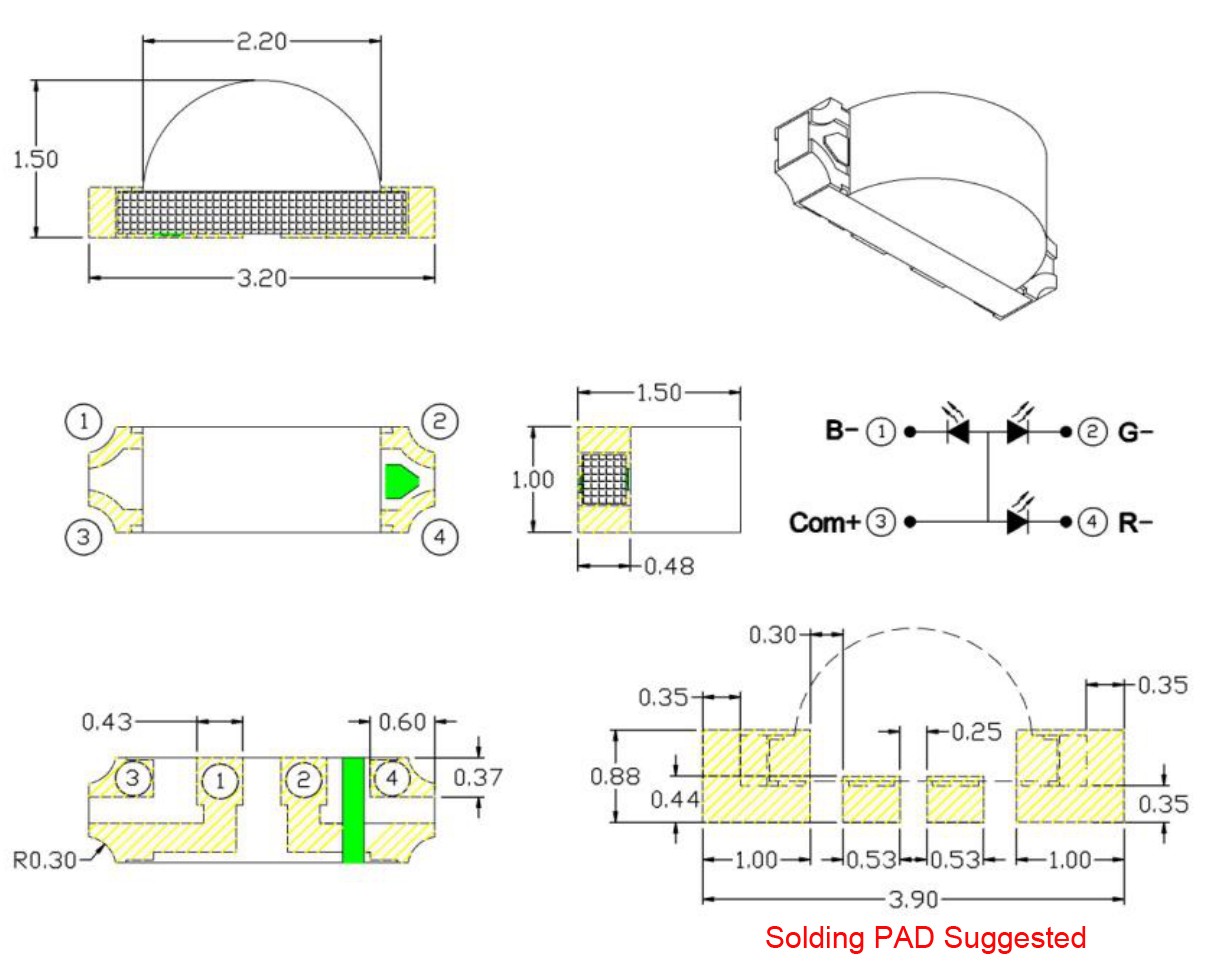

❈ Package Profile

Notes: a. All dimensions are in millimeters ;

b. Tolerance is ± 0.10 mm unless otherwise noted.

❈ Product Parameter

Absolute Maximum Ratings At Ta=25℃

Parameter	Symbol	Rating			Unit
Power Dissipation	Pd	R	75		mW
		G	75
		B	75
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	R	70		mA
		G	100
		B	100
DC Forward Current	IF	R	25		mA
		G	25
		B	25
Reverse Voltage	VR	R	5		V
		G	5
		B	5
Operating Temperature Range	Topr	-30°C ~ + 85°C
Storage Temperature Range	Tstg	-40°C ~ + 90°C
Soldering Condition	Tsol	Reflow soldering : 260°C For 5 Seconds Hand soldering: 300°C For 3 Seconds
Electrostatic Discharge	ESD	2000		V

Electrical Optical Characteristics At Ta=25℃

Parameter	Symbol	Color	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	IV	R	---	60	---	mcd	IF = 5mA
		G	---	300	---
		B	---	60	---
Dominant Wavelength	λd	R	-620		-625-	nm	IF = 5mA
		G	518		-524-
		B	464		-470
Peak Wavelength	λp	R	---	625	---	nm	IF = 5mA
		G	---	523	---
		B	---	470	---
Spectral Line Half-Width	Δλ	R	---	20	---	nm	IF = 5mA
		G	---	35	---
		B	---	30	---
Forward Voltage	VF	R	1.8		2.2	V	IF = 5mA
		G	2.5		3.0
		B	2.5		3.0
Reverse Current	IR	R	---	---	5	uA	VR=5V
		G	---	---	5
		B	---	---	5
Viewing Angle	2θ1/2	---	---	120	---	deg	IF = 5mA

Notes: 1.Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

2.θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3.The dominant wavelength, λd is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

❈ Packaging
